Digital PLL FM Synthesizer 2.5W High Performance Kit
Product Number: FM-2.5W-Kit
Technical Specification for the Digital PLL FM Synthesizer 2.5W High Performance Kit
This unit is a highly efficient FM transmitter with up to 2.5W of clean output. Ideally suited for users that demand broadcast quality and broadband operation (no-tune). Its synthesized exciter with advanced PLL technology is designed for pristine audio quality and unsurpassed reliability.

Being more configurable and flexible than other units in their class, our units offer exceptional value with no compromise on performance.
POWER OUTPUT: 0-2.5W BROADBAND
OUTPUT FREQUENCY: 87.5-108MHZ
FREQUENCY STEPS: 50KHz FROM LCD

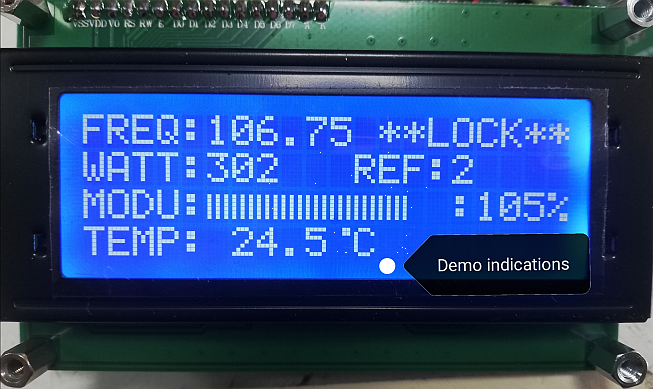

FREQUENCY SELECTION: FRONT PANEL LCD SYSTEM
FREQUENCY CONTROL: PHASE LOCKED LOOP (PLL)
UNLOCK PROTECTION: UNLOCK POWER DOWN
AUDIO FREQUENCY RESPONSE: 50Hz~15KHz
PRE-EMPHASIS: SELECTABLE 50, 75 uS, OR FLAT
COMPOSITE INPUT LEVEL: 0.5Vp-p FOR ±75KHz DEVIATION
DC POWER: 13.5~15V DC 500mA MAX
FREQUENCY STABILITY: BETTER THAN ±200Hz (FINE ADJUSTMENT AVAILABLE)
RF OUTPUT IMPEDANCE: TYPE (50 OHMs)
HARMONIC FILTERING: BETTER THAN -50dBC
SPURIOUS EMISSIONS: BETTER THAN -85dBC
MODULATION: DIRECT FREQUENCY
